Ascender 48 – 4K – PL Teknik Özellikler

Teknik Özellikler

12 Seamless Inputs
  • 42 total input plugs

  • 6x HDMI (3x HDMI up to 4K@30Hz included)

  • 3x DisplayPort (up to 4K@30Hz)

  • 9x DVI-I (3x DVI Dual-Link up to 2560x1600 included)

  • 12x 3G/HD/SD-SDI

  • 12x Universal Analog (6x HD15 and 6x DVI-A)

  • Supports quad-head HD sources

State-of-the-art Processing
  • Ultra-low latency 10 bit 4:4:4 processing

  • Uncompromising scaling performance and image quality

  • Supports de-interlacing, frame rate and aspect ratio conversion

  • 6 true seamless scaled layers per output (48 scalers)

  • 1 native background per output using still images or live sources

  • Perspective layers allow for 3D layer manipulation/rotation

  • Advanced layer management

Creative Display Configurations
  • Supports any combination of single-screen or widescreen applications

  • Single/Master screen memories to easily recall looks on all the screens

  • Custom output formats for non-standard display applications

  • Independent resolution and rate on all outputs

  • Rotation capability in increments of 90°

  • Custom Canvas mode for special LED wall applications

  • Area of Interest option to customize active areas of outputs

  • Confidence monitor available for unused outputs

Up to 100 Still Image Memories
  • Still images fully resizable

  • Download/upload via Web RCS

  • Capture from live inputs

  • Supports alpha-channels for transparent background

Rugged Steel Chassis
  • Heavy-duty design for unrivalled reliability and durability

  • Independent Frame Lock input and output loop

  • Quiet: 49dB average noise at 1m

  • Tally/GPI-O

4 Outputs
  • 5 plugs per output

  • 8x Universal Analog (4x HD15 and 4x DVI-A)

  • 4x 3G/HD/SD-SDI

  • 2x DVI-I Dual-Link up to 2560x1600

  • 2x DVI/HDMI 4K up to 4K@30Hz 4:4:4 or up to 4K@60Hz 4:2:0

  • 4x SFP (Optical for SDI Fiber transmission)

  • Supports Quad HD (4K@60Hz 4:4:4 on 4 cables)

Advanced Video Effects
  • Seamless crossfade on all layers, on all 12 sources

  • Borders: Edge, Smooth, Smooth Edge, Shadow

  • Transitions: Cut, Fade, Slide, Wipe, Circle, Stretch, Depth, Flying window with programmable paths

  • Layer effects: Background Cut, Transparency, Luma/Chroma Key, DSK, H&V Flip, Cut and Fill

  • Color Effects: B&W, Negative, Sepia and Solarize

Simple Setup and Advanced Control
  • Web RCS: embedded intuitive drag and drop web-based interface

  • Live video thumbnails shown on GUI

  • Collaborative architecture: up to 5 simultaneous operators

  • Wide range of hardware and software control solutions available (Vertige™, RCU, Shot Box², Control Box²…)

  • TCP/IP protocol supported by all major third-party control systems

  • AMX/Crestron drivers

  • AW VideoCompositor: design-intuitive drag and drop Crestron® user interfaces to control your live events with the LiveCore™ series image

Independent Monitoring Output
  • Output plugs: HD15, DVI-I DL, 2x 3G-SDI and Analog SDTV (4x BNC)

  • Customizable layout with up to 12 windows

  • Real-time monitoring of sources, preview, program

  • 8 memories available to save custom monitoring layouts

Expandable for Larger Events
  • 2 chassis can be linked to double input/output capabilities (24x8 system)

  • Up to 24 LiveCore™ chassis can be controlled to create huge video canvases with up 192 megapixels

Ascender 48 – 4K – PL Dökümanlar

İndirilebilir Dökümanlar

Ürün Broşürü
Yüksek Çözünürlüklü Fotoğraf

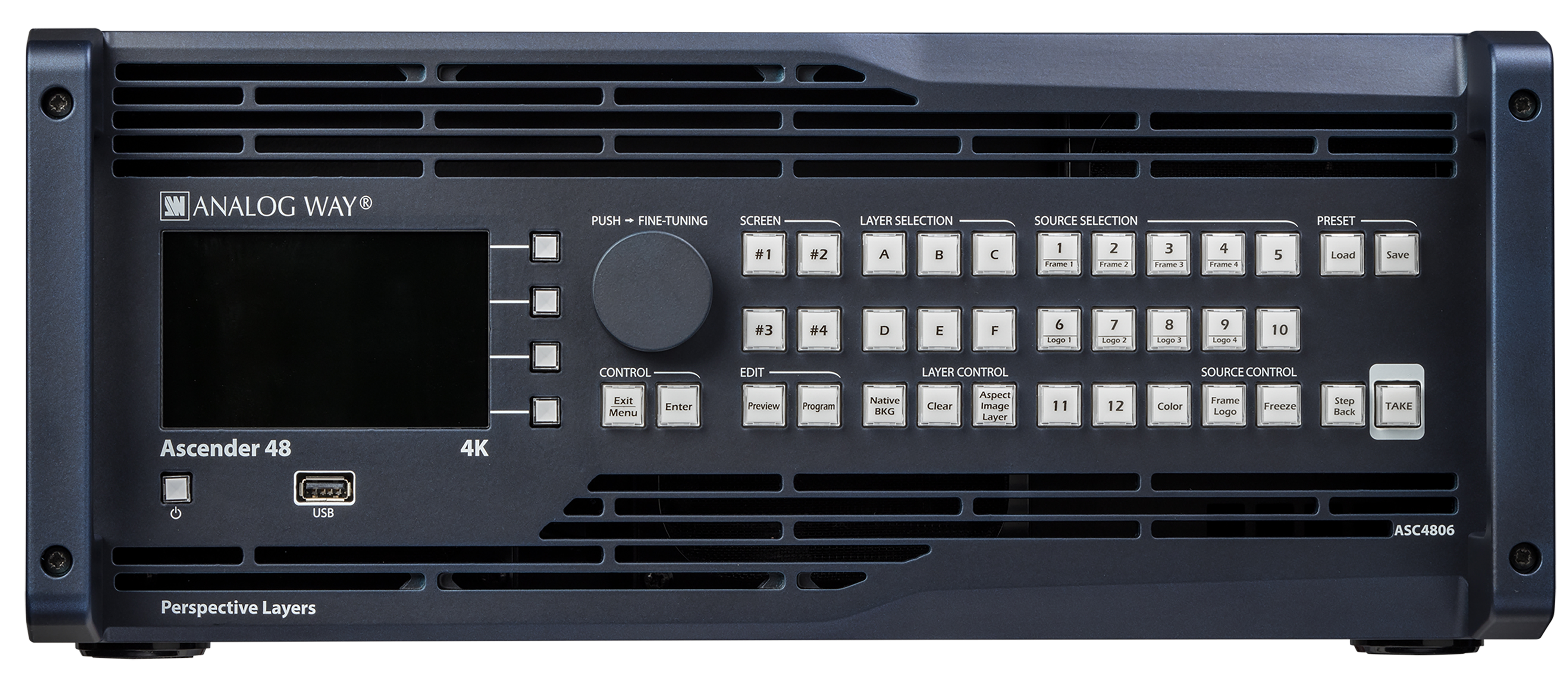

(Ön)
Yüksek Çözünürlüklü Fotoğraf

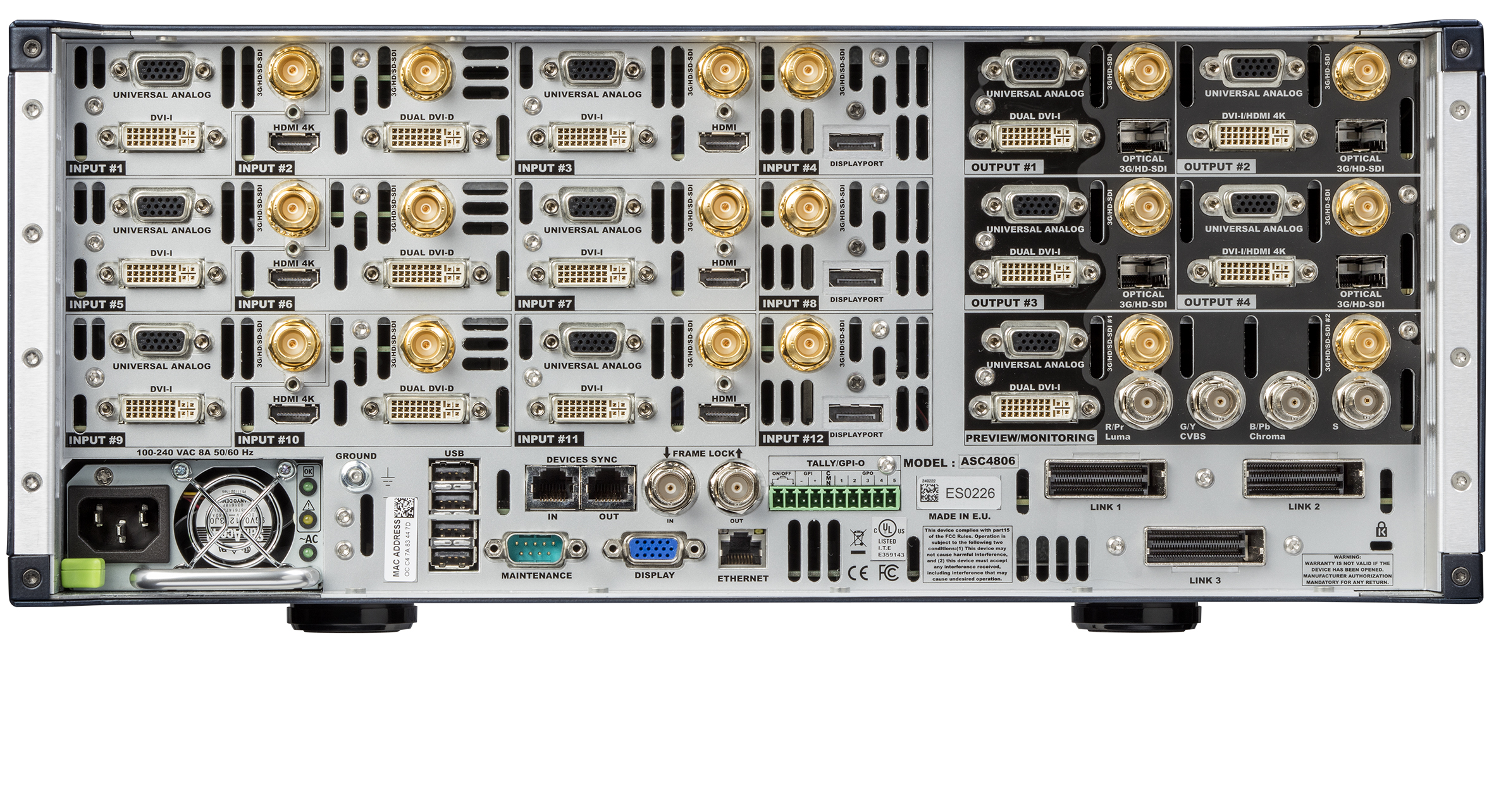

(Arka)
