Teknik Özellikler

10 Seamless Inputs
  • 16 total input plugs

  • 4x DVI-D up to 2048x1152@60Hz

  • 4x HDMI up to 2048x1152@60Hz

  • 4x Universal Analog up to 2048x1152@60Hz

  • 4x 3G/HD/SD-SDI up to 2K@60Hz

High Performance Video Processing
  • True-seamless switching technology

  • Real time image processing and uncompromising video quality

  • Up to 4 resizable live layers on still background (Quadravision mode)

  • Up to 3 resizable live layers on still background (Switcher mode)

  • 1 resizable live layer on live/still background per output (Matrix mode)

  • Custom output formats for non-standard display applications

  • Advanced de-interlacing processing

  • Pan & Zoom resizing up to 1000%

  • Layer effects: Chroma/Luma Key, Flying, Zooming and Cropping

  • Transitions: Fade, Cut, Wipe, Slide, Stretch, Depth, Circle & Flip

  • Border & Shadow

Simple Setup and Advanced Control
  • Full-featured and easy to use front panel with large VFD screen

  • RCS²: User-friendly and intuitive graphic interface

  • Controllable via a standard TCP/IP or RS-232 serial interface

  • Orchestra²: Intuitive and ergonomic controller

  • RK-350: Remote Keypad

  • SB80-2: Shot Box²

  • AMX/Crestron drivers

2 Outputs
  • Configurable either as two independent Program outputs OR as one Program output and one Preview output

  • 2 plugs per output

  • 2x DVI up to 2048x1152@60Hz

  • 2x Universal Analog up to 2048x1152@60Hz

Independent Video Output
  • Configurable as video output or program clone

  • 1x 3G-SDI up to 2K@60Hz

  • 4x BNC for Analog SD TV (CVBS, YPbPR) up to 625/576i

Advanced Audio Management
  • 3 modes: Breakaway, Fast Routing and Top Layer

  • Delay compensation (manual up to 80ms or auto)

    Audio input:

  • DVI / HDMI / SDI Audio de-embedded

  • 4x Audio stereo Analog (Balanced/Unbalanced)

  • 2x S/PDIF (AES-3id compatible)

    Audio output:

  • DVI / SDI Audio embedded

  • 2x Audio stereo Analog (Balanced/Unbalanced)

  • 2x S/PDIF (AES-3id compatible)



İndirilebilir Dökümanlar

Ürün Broşürü
Yüksek Çözünürlüklü Fotoğraf
(Ön)

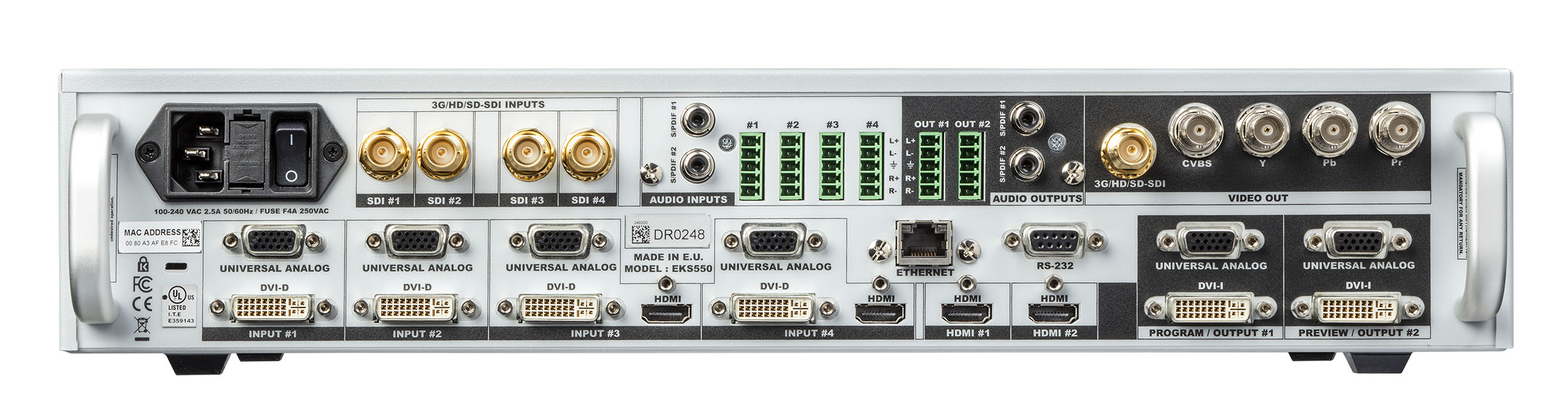

Yüksek Çözünürlüklü Fotoğraf
