Teknik Özellikler

Teknik Özellikler

8 Seamless Inputs
  • 12 total input plugs

  • 2x DVI-D up to 2048x1152@60Hz

  • 4x HDMI up to 2048x1152@60Hz

  • 2x Universal Analog up to 2048x1152@60Hz

  • 2x 3G/HD/SD-SDI up to 2K@60Hz

  • 2x HDBaseT™ with PoE+ (48V; 30W) up to 2048x1152@60Hz. Support of video, embedded audio and Ethernet pass-through

High Performance Video Processing
  • True-seamless switching technology on each output

  • Real time image processing and uncompromising video quality

  • 1 live background + 1 keyed layer per output

  • Custom output formats for non-standard display applications

  • Advanced de-interlacing processing

  • Pan & Zoom resizing up to 1000%

  • Layer effects: Chroma/Luma Key, Flying, Zooming and Cropping

  • Transitions: Fade, Cut, Wipe & Slide

  • Border & Shadow

Advanced Audio Management
  • 3 modes: Breakaway, Fast Routing and Top Layer

  • Delay compensation (manual up to 80ms or auto)

    Audio input:

  • DVI (as HDMI) / HDMI / SDI Audio de-embedded

  • 4x Audio stereo Analog (Balanced/Unbalanced)

  • 2x S/PDIF (AES-3id compatible)

    Audio output:

  • HDMI / SDI Audio embedded

  • 2x Audio stereo Analog (Balanced/Unbalanced)

  • 2x S/PDIF (AES-3id compatible)

2 Independent Outputs
  • 2 plugs per output

  • 2x HDMI up to 2048x1152@60Hz

  • 2x HDBaseT™ up to 2048x1152@60Hz. Support of video, embedded audio, Ethernet, bidirectional RS232 and IR

  • HDMI and HDBaseT™ outputs can output simultaneously

Enhanced Features
  • 8 Memory Presets per output and up to 64 via RCS²

  • Quick Frame mode: Instantly display a stored frame above all layers

  • Internal test patterns: Select between 9 available test patterns

  • EDID management on 6 inputs. Ability to read & display outputs EDIDs

  • HDCP Compliant

Simple Setup and Advanced Control

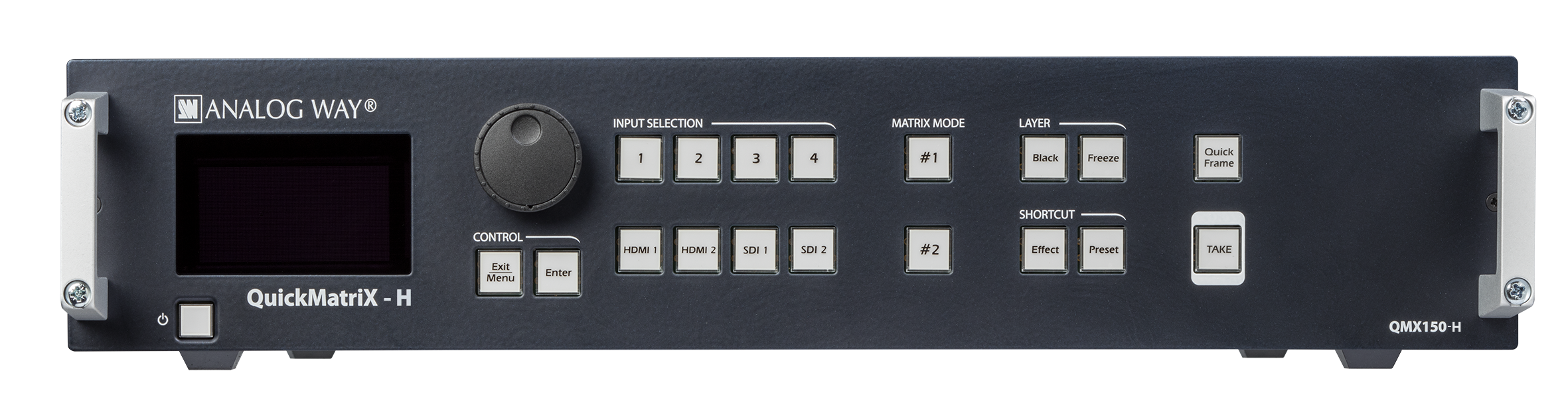

  • Full-featured and easy to use front panel with large VFD screen

  • RCS²: User-friendly and intuitive graphic interface

  • Controllable via a standard TCP/IP or RS-232 serial interface

  • RK-350: Remote Keypad

  • SB80-2: Shot Box²

  • AMX/Crestron drivers
